Installation method of cold storage door

Whether the cold storage can carry out high-performance work, which plays a key role is the cold storage door. Because the cold storage door from time to time there will be staff to come in and out, in addition to the handling of goods or air exchange need to be through the cold storage door, so the installation of cold storage door is very important. Cold storage door installation does not meet the requirements will directly lead to the outdoor hot air into the cold storage, thus bringing immeasurable losses to the user. Here to see in the cold storage construction in the cold storage door installation method!

First, the cold storage door installation method
1, cold storage library body assembly is completed, the right and left door frame plate on the vertical convex bar left out of the door on the height of the frame plate, the excess part of the saw off;
2、Push the upper frame plate of the cold storage door into the installation position from the bottom upward, and connect the hook at the upper end with the pin box of the top plate to fix it;
3、For the upper frame plate of the door of the partition wall, push it into the installation position from the bottom upward, and fix it with the angle iron and the top plate;
4, the installation of the integral door frame plate is the same as the installation of other cold storage wall panels, with hooks and pin boxes connected to the top, bottom and wall panels;
5、Installation of heating wire and door frame wrapping strip: the heating wire of the movable cold storage body door is laid around 25mm along the outer side of the opening, and is bonded around the door frame by aluminum foil adhesive tape. The door frame package is riveted to the door frame and covers the heating wire. The sealing strip is a low-temperature resistant, oil-resistant, high-elasticity rubber sealing strip.

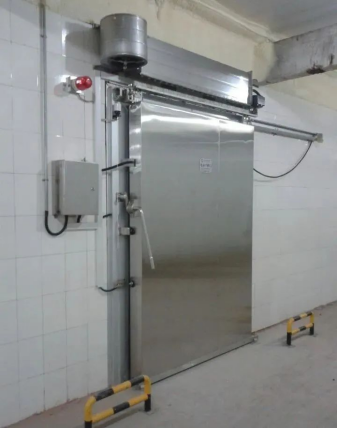

Air curtain refers to the air curtain machine, air curtain machine installation is generally in the cold storage door directly above, can produce rapid downward airflow, to prevent cold air outflow, saving electricity, the continuous formation of the air door, but also air circulation, isolation of dust, smoke, odor can also prevent insects and other micro-organisms into the library.


Second, what is the difference between the cold storage door above the air curtain machine or not?
There is no air curtain machine: cold storage items into or out of the library will lead to a large loss of cold air in the library, cold storage of food is easy to cause pests preferences, in the cold storage door into the library, the library of goods have a great impact on the library.
The benefits of having an air curtain machine: the air curtain machine forms a curtain of air, making the air cold and hot exchange, delaying the rate of loss of cold air, the air curtain can also prevent harmful insects from entering the interior of the cold storage.
