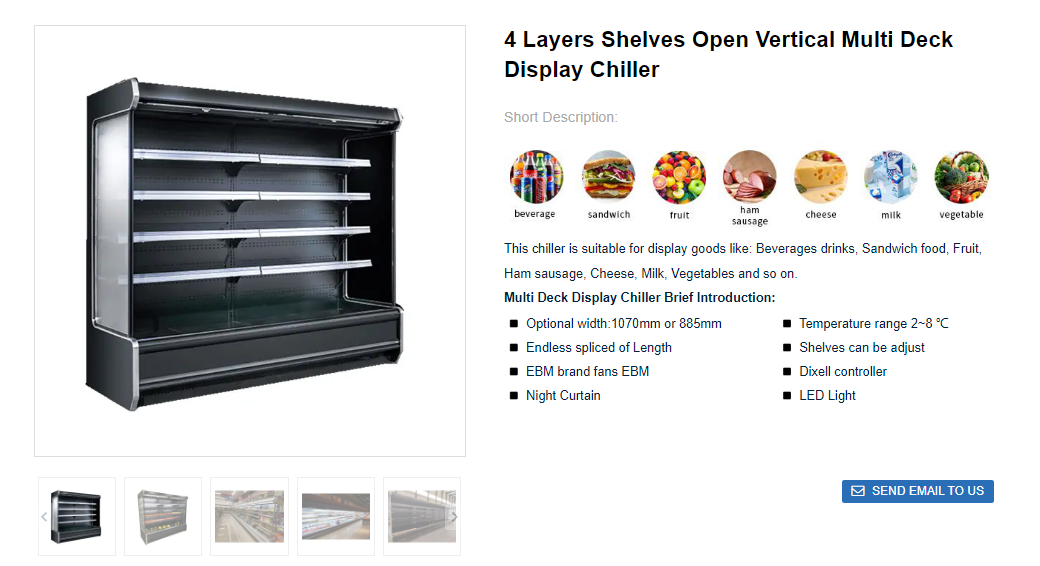

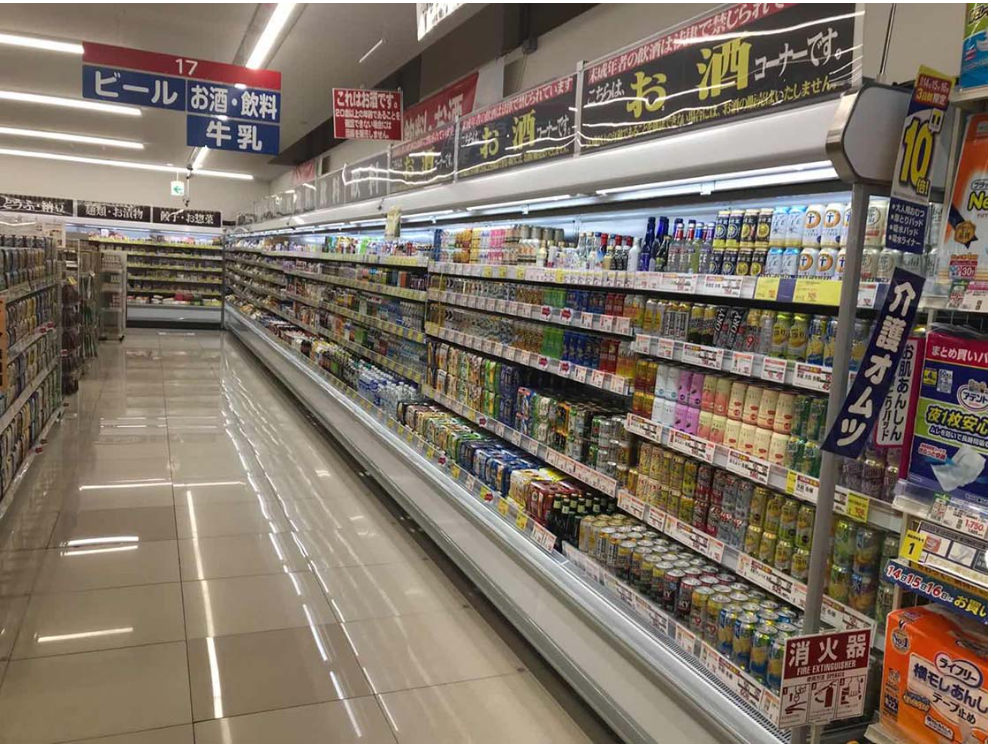

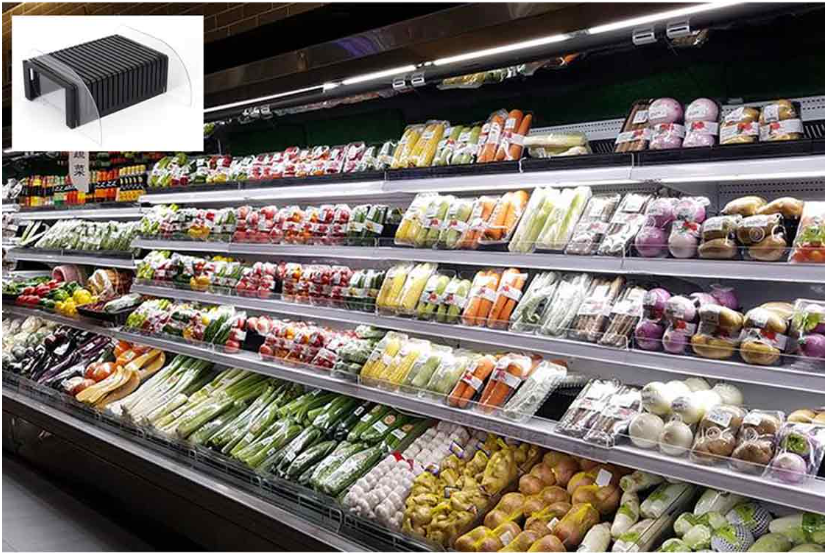

4 Layers Shelves Open Vertical Multi Deck Display Chiller



We have 2 kinds of this open chiller

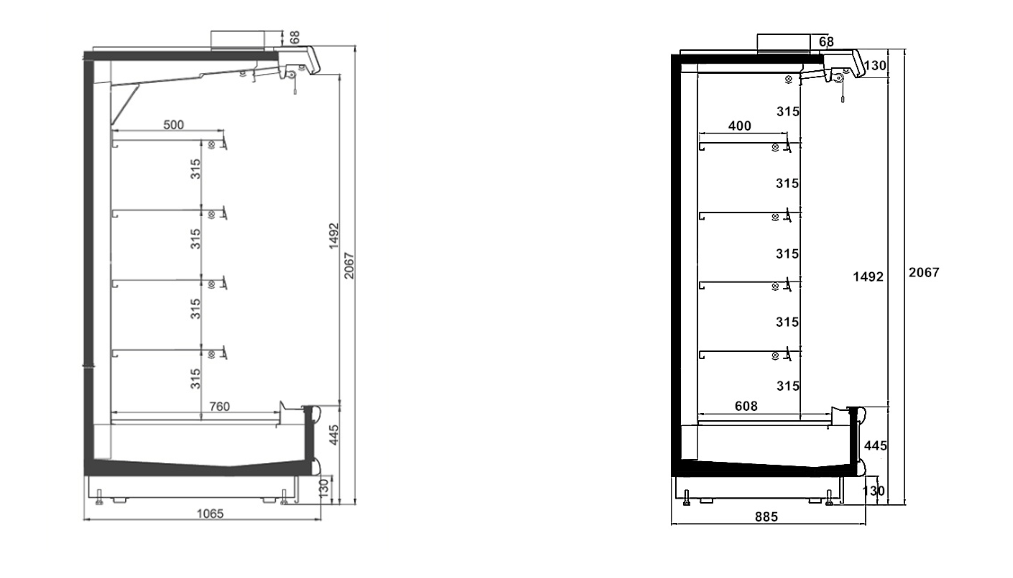

1. 1070mm width 4 layers shelves display open chiller 1070mm
2. 885mm width 4 layers shelves display open chiller 885mm
You can choose freely based on your requirement.

Type Model External dimensions(mm) Temperature range(℃) Effective Volume(L) Display area(㎡)
DLCQ Wide Open Chiller
(4 layers shelves)
DLCQ-1311F 1250*1070*2070 2~8 1020 1.85
DLCQ-1911F 1875*1070*2070 2~8 1670 2.77
DLCQ-2511F 2500*1070*2070 2~8 2110 3.69
DLCQ-3811F 3750*1070*2070 2~8 3120 5.54
DLCQ-N90FK(Inner Corner) 1060*1070*2070 2~8 1190 3.21
Type Model External dimensions(mm) Temperature range(℃) Effective Volume(L) Display area(㎡)
DLCQ Narrow Open Chiller
(4 layers shelves)
DLCQ-1309F 1250*885*2070 2~8 920 1.86
DLCQ-1909F 1875*885*2070 2~8 1520 2.81
DLCQ-2509F 2500*885*2070 2~8 1890 3.73
DLCQ-3809F 3750*885*2070 2~8 2820 5.61
DLCQ-N90FZ(Inner Corner) 1000*1000*2070 2~8 790 2.73



”"

”"

”"

”"

”"
