Newly Arrival Leasy All-in-One Integrated 420L Heatpump Water Heater with High Cop

Short Description:

Send email to us

Product Detail

Product Tags

We keep improving and perfecting our products and service. At the same time, we work actively to do research and development for Newly Arrival Leasy All-in-One Integrated 420L Heatpump Water Heater with High Cop, We are able to customize the solutions according to your needs and we can easily pack it for you when you purchase.
We keep improving and perfecting our products and service. At the same time, we work actively to do research and development for China Heatpump Water Heater and Water Heater price, Look forward to the future, we are going to focus more on the brand building and promotion . And in the process of our brand global strategic layout we welcome more and more partners join us, work together with us based on mutual benefit. Let’s develop market by fully utilizing our comprehensive advantages and strive for building.

Parameter

Unit Parameter Table

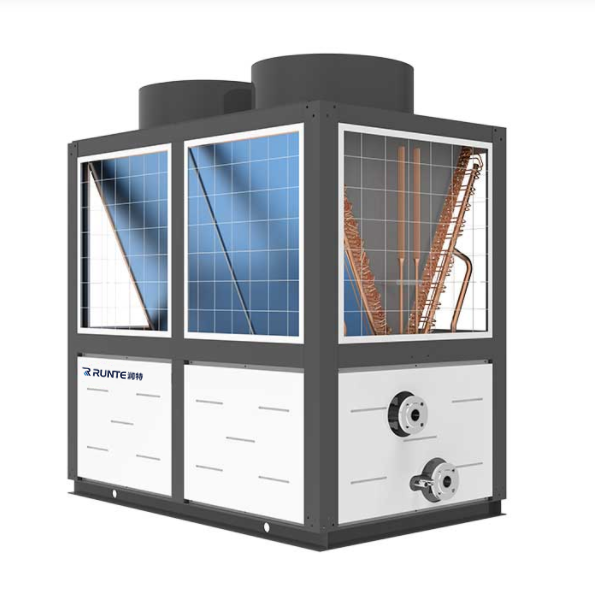

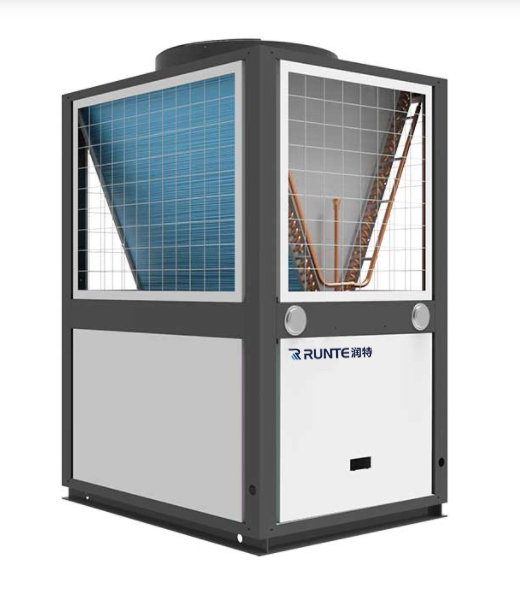

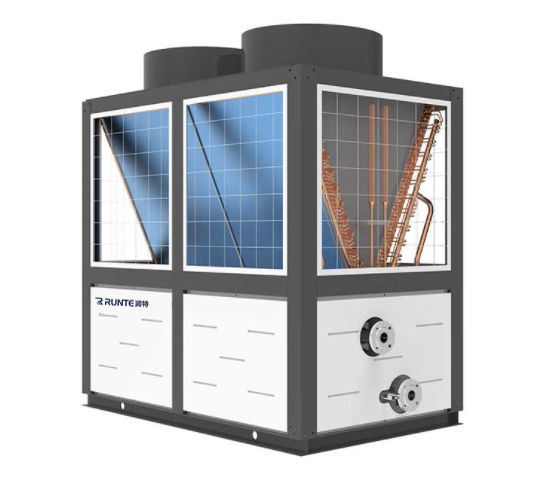

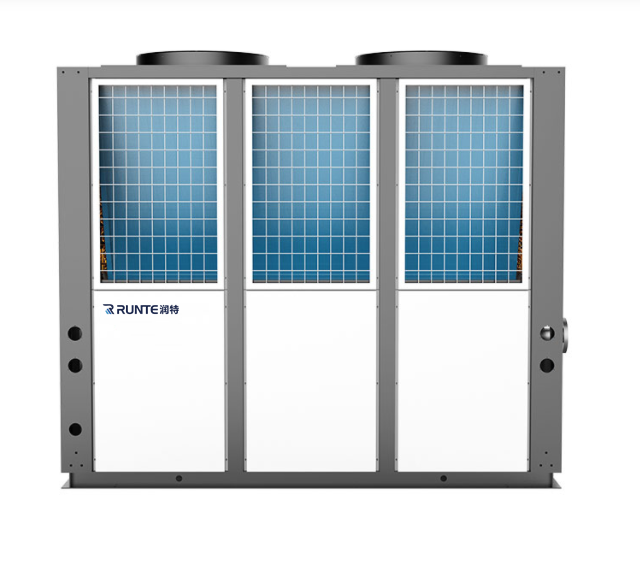

Air-cooled Module Unit Parameter Table
Unit Type Unit parameters		ZGR-65ⅡAG2	ZGR-130ⅡAG2
Rated Refrigeration (A35/W7℃）	Cooling Capacity（kW）	65	130
	Power（kW）	20.3	40.6
	EER	3.20	3.20
Rated Heating (A7/W45℃）	Heating Capacity（kW）	70	140
	Power（kW）	20.5	41.0
	COP	3.41	3.41
Mains		380V/3N~/50Hz
Maximum Operating Current（A）		58	115
Cooling Operating Ambient Temperature Range（℃）		16~49
Heating Operating Ambient Temperature Range（℃）		-15~28
Cooling Water Temperature（℃）		5~25
Heating Water Temperature（℃）		30~50
Refrigerant		R410A
Safeguard		Higher-lower voltage protection, antifreeze protection, overload, water flow protection, etc.
Capacity Adjustment Method		0~100%	0~50%~100%
Throttling Method		Electronic Expansion Valve
Water Side Heat Exchanger		Shell and Tube Heat Exchanger
Wind Side Heat Exchanger		High-efficiency Finned Tube Heat Exchanger
Fan		High Efficiency and Low Noise Axial Flow Fan
Water System	Chilled Water Flow(m³/h)	11.2	22.4
	Hydraulic Pressure Drop(kpa)	40	75
	Maximum Working Pressure(Mpa)	1.0
	Water Pipe Connection	DN65(Flange)	DN80(Flange)
Anti-shock Protection Type		Ⅰ
Waterproof Level		IPX4
Dimentions	Length(mm)	1930	2340
	Width(mm)	941	1500
	Height(mm)	2135	2350
Weight(kg)		590	1000
Rated refrigeration: outdoor dry/wet bulb temperature is 35°C/24°C; outlet water temperature: 7°C
Rated heating: outdoor dry/wet bulb temperature is 7℃/6℃; outlet water temperature is: 45℃
Models, parameters, and performance will be changed due to product improvements. Please refer to the actual product and nameplate for specific parameters;
Executive Standard:GB/T 18430.1(2)-2007 GB/T 25127.1(2)-2010

We keep improving and perfecting our products and service. At the same time, we work actively to do research and development for Newly Arrival Leasy All-in-One Integrated 420L Heatpump Water Heater with High Cop, We are able to customize the solutions according to your needs and we can easily pack it for you when you purchase.
Newly Arrival China Heatpump Water Heater and Water Heater price, Look forward to the future, we are going to focus more on the brand building and promotion . And in the process of our brand global strategic layout we welcome more and more partners join us, work together with us based on mutual benefit. Let’s develop market by fully utilizing our comprehensive advantages and strive for building.
