Cold room panel with different thickness for storage

Short Description:


Product Detail

Product Tags

meat seafood ice cream storage room Parameter

Different types of cold room
Cooler room -5~5 ℃ panel thickness: 75mm, 100mm For fruits, vegetables, milk, cheese etc.
Freezer room -18~-25 ℃ panel thickness: 120mm, 150mm For frozen meat, fish, seafood, ice cream etc.
Blast freezer room -30~-40 ℃ panel thickness: 150mm, 180mm, 200mm  For fresh fish, meat, fast freezer etc.

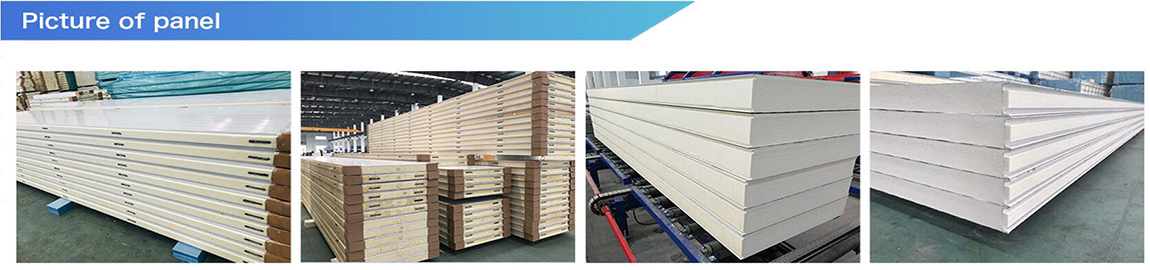

cold room (1)
Density (Kg/m3) Bending Strength (Mpa) Compressive Strength (Mpa)
38-45 >0.25 >0.2
Thermal Conductivity(W/n℃) Water absorption (KG/m3) Self-extinguish time (S)
<0.022 <0.30 <7S
Dimension Length(m)*Width(m)*Height(m)
Panel New material polyurethane insulation panel,40~45kg/m3
Width of Panel 960mm, ect. (customized)
Height of Panel 1 to 12m
Panel thickness 50mm,75mm,100mm, 120mm,150mm,200mm
Type of door Hinged door, Sliding door, Double swing electric sliding door, Truck door
Temperature Range -60℃~+20℃ optional
Main Fittings 1) Steel Coils: Color Coated Steel Coil, Galvanized Steel Coil/Sheet, Galvalume Steel Coil, Cold Rolled Steel Coil/Sheet, Steel trips, etc.
2) Building Metallic Materials: Metal Roofing & Wall Sheet,Galvanized/Galvalume Corrugated Steel Sheet, Floor Decking Sheet; C&Z Purlin; H Beam; Steel Structure, etc.
3) Sandwich Panel: EPS Sandwich Panel, PU Sandwich Panel, Rock Wool Sandwich Panel, XPS Panel, all kinds of sandwich panel, etc.
4) Steel Pipes: ERW round steel pipe, SHS and RHS steel pipe, Hot Dip Galvanized steel pipe, Pregalvanized steel pipe, API steel pipe, Seamless steel pipe, Stainless steel pipe, etc. Angle Steel Bar, Deformed Steel Bar, Round Steel Bar, Wire Rod, etc.

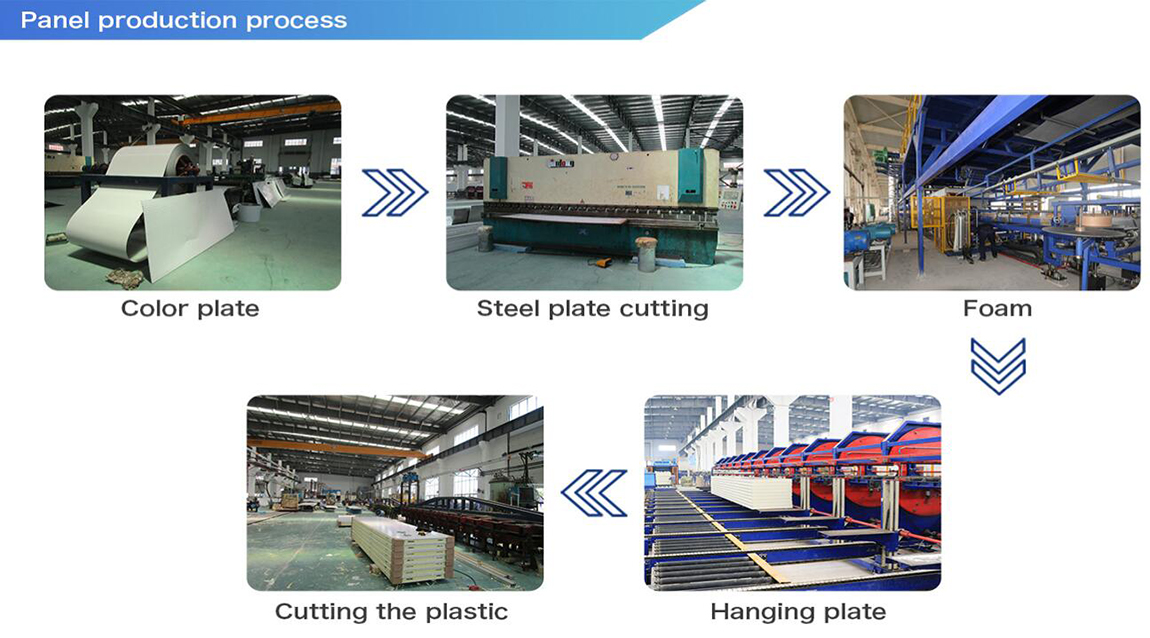

cold room (3)

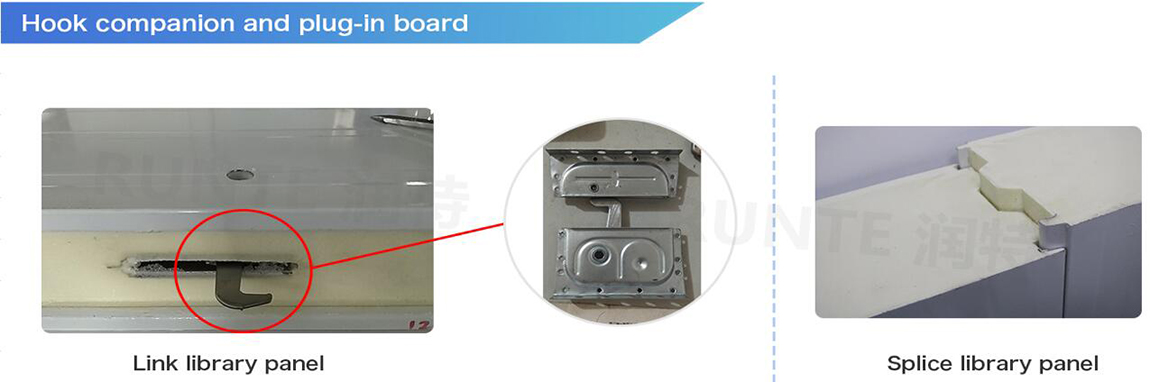

cold room (4)

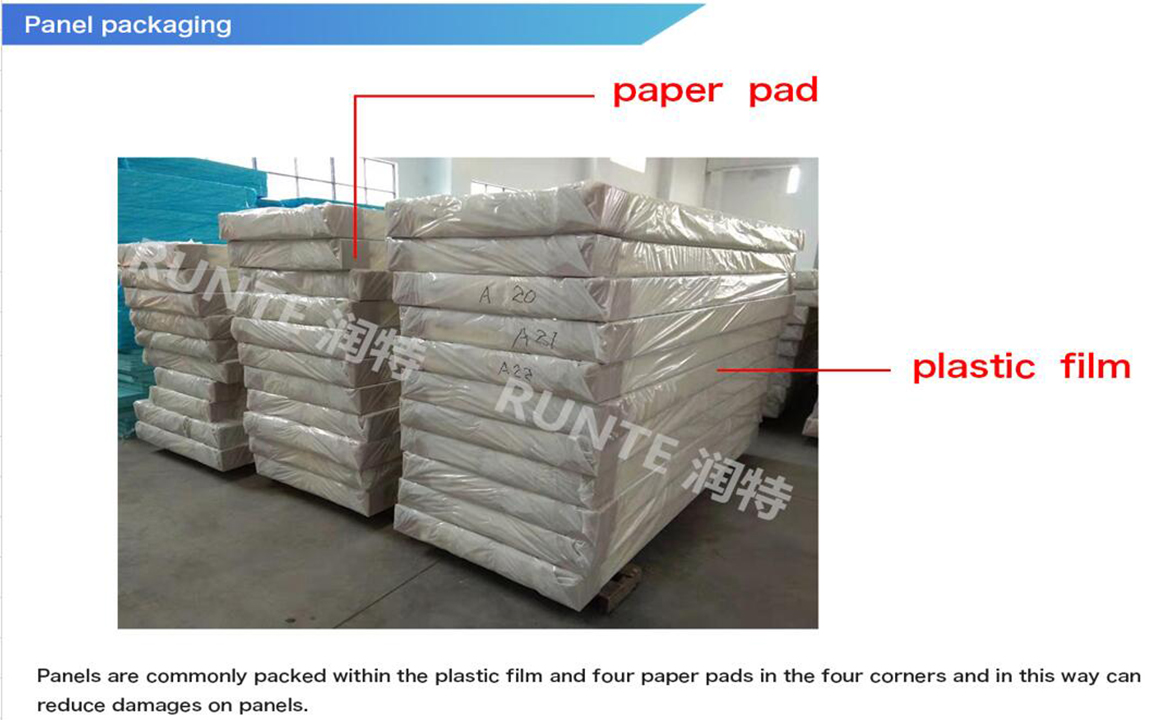

cold room (7)
air4
air5
air6
air7
